YJJ 4O3 MST 4 Series Electrochemical Ozone Sensor Is Used For Gas leakage Monitoring (Multiple Ranges Available)

Product Description:

YJJ 4O3 MST 4 Series Electrochemical Ozone Sensor Is Used For Gas leakage Monitoring (Multiple Ranges Available)

Features:

Model selection is as follows:

Product
Model
4O3-1
4O3-5
4O3-10
4O3-20
4O3-50
4O3-100
4O3-200
4O3-500
4O3-1000
4O3-2000
4O3-5000
4O3-10000

Repeatability:1% output signal
Linearity:Linearity, regression coefficient R2=0.999
Temperature:-20℃℃ ~+50℃
Humidity:15%~90%RH(relative humidity),non-condensing
Pressure:Atmospheric pressure +10%
Pressure factor:<0.02% signal /MBar
Baseline extent:< ±0.4μA
Long term drift:<5% signal loss / year
Bias voltage:No bias voltage
Load resistance:10
Built-in Filters:NO
Lifetime:2 years (in air)
Warranty:1 year (from the date of shipment)
Output current polarity:Negative current (define the output current of carbon
monoxide and hydrogen sulfide sensor as positive

Anti-interference characteristics:

The company requires the use of the target gas (the gas to be tested) for calibration and testing to ensure the accuracy of the detection and alarm equipment. The purpose of providing anti-interference data is to understand the cross-response characteristics of the sensor to certain other gases, rather than providing alternative gases for calibration; the response characteristics of cross-interfering gases are not guaranteed to be linear, and there will be significant cross-gas sensitivity variations among sensor batches. Therefore, if the cross-gas is used for calibration, the malt sensor cannot guarantee the accuracy of the detection and alarm equipment.

Specifications:

electrochemical ozone sensor for gas monitoring

gas leakage sensor with multiple ranges

YJJ 4O3 MST ozone sensor

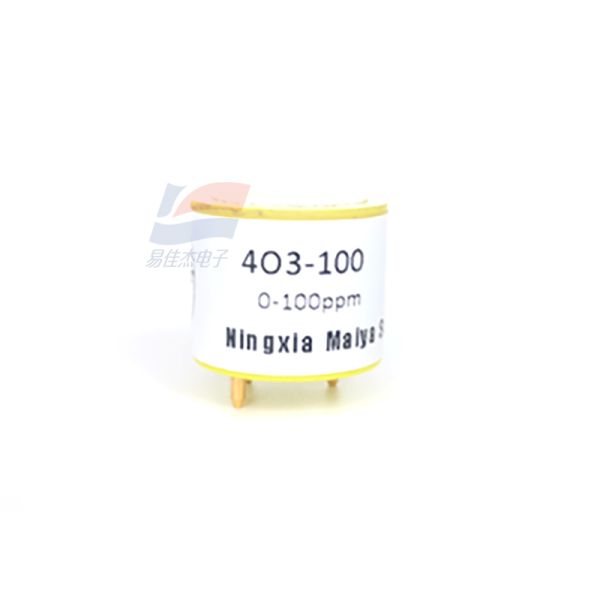

YJJ 4O3 MST 4 Series Electrochemical Ozone Sensor Is Used For Gas leakage Monitoring (Multiple Ranges Available) Images
