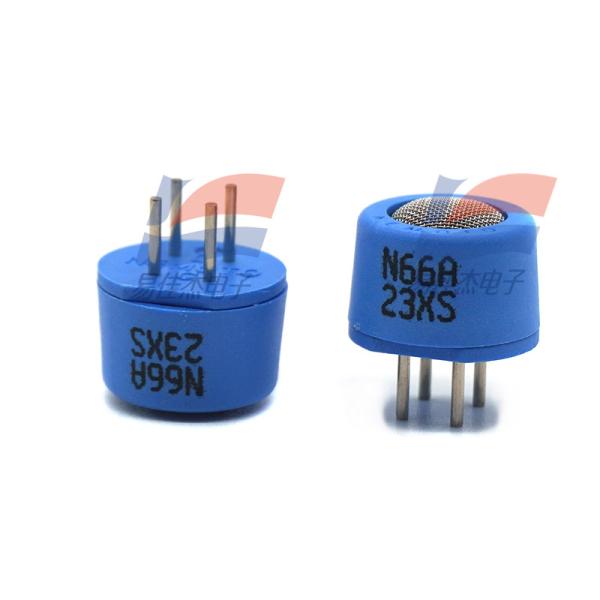

YJJ NAP-66A N66A Civilian Gas Sensors Are Used In GasLeak Detectors

  • 1
  • 2
  • 3

Brand Name : YJJ

Model Number : NAP-66A N66A

Place of Origin : Japan

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1500

Delivery Time : 5 to 8 working days

Packaging Details : Palletized

Detection range : 0 - 100% LEL (Minimum Explosion Limit)

Power supply voltage : 2.0 ± 0.2V

Operating current : 140 - 160mA

Operating temperature : -10°C to 50°C

Shell material : Metal casing

Sensitivity : Capable of detecting liquefied petroleum gas (LPG)

Contact Now

Product Description:

YJJ NAP-66A N66A Civilian Gas Sensors Are Used In GasLeak Detectors

Features:

It can be used in industrial and commercial applications of combustible gas detectors, it has a good detection sensitivity in toxic gas environment such as HMDS and H2S.

Features:

Good stability

Excellent repeatability and consistency

It has good linearity for different gas concentrations.

Excellent resistance to toxic gases

It can be used flexibly in combustible gas alarm and combustible gas concentration detector

Related parameters:

Absolute maximum rated power

Supply voltage AC 3.3V (50-60Hz) DC 3.3V

Range of ambient temperature and humidity during operation:

Ambient temperature -40 to +80 ° C

Relative humidity 99%RH (no condensation

Range of temperature and humidity during storage:

Ambient temperature -40 to +80 ° C

Relative humidity 99%RH (no condensation)

Rated power

Supply voltage AC 2.5 ± 0.25V(50-60Hz) DC 2.5 ± 0.25V

Current (Add 2.5V) AC 160 ~ 180mA(50-60Hz) DC 160 ~ 180mA

Range of ambient temperature and humidity during operation:

Ambient temperature -20 ~ +70 ° C

Relative humidity below 95%RH (no condensation)

Range of temperature and humidity during storage:

Ambient temperature -30 to +70 ° C

Relative humidity below 95%RH (no condensation)

Specifications:

Maximum ac 3.3v(50-60Hz)
The temperature -40~+ 80℃
Humidity less than 99% (no condensation)
Temperature -20 ~ + 60℃

YJJ NAP-66A N66A Civilian Gas Sensors Are Used In GasLeak Detectors
